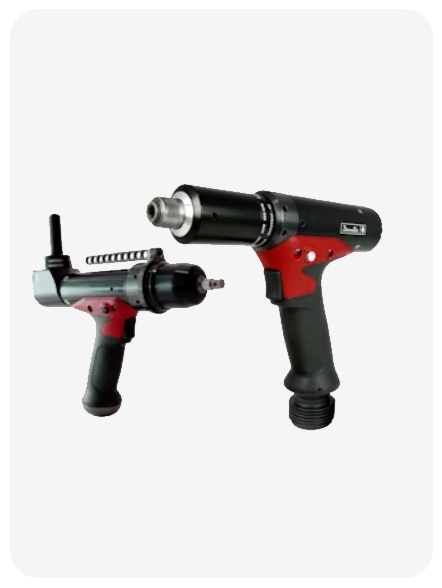

E-PULSE – Electric Pulse pistol Corded transducerized nutrunner

For your most demanding applications, demanding a quick takt time, low reaction and one handed operation, the Desoutter ELRT E-Pulse is the perfect tool Whatever your application, the Desoutter E-Pulse with a CVIL controller offers you outstanding flexibility and full Industry 4.0 tightening data.

Benefits

• Patented design featuring no oil chamber decreasing both reaction and maintenance, improving uptime and lowering lifecycle costs.
• Torque and angle control ensuring the quality of each tightening.
• Built in transducer, complimented by innovative software, offering multiple tightening possibilities with just one tool.
• High reliability and low maintenance thanks to it brushless motor and long life gears, ensuring low lifecycle costs.
• Direct operator feedback with the 2 coloured LED’s reducing your cycle time and potential quality costs.

Max torque in forward	Min torque in forward	Torque Control System
50.00 Nm	10.00 Nm	Shut-off-transducer

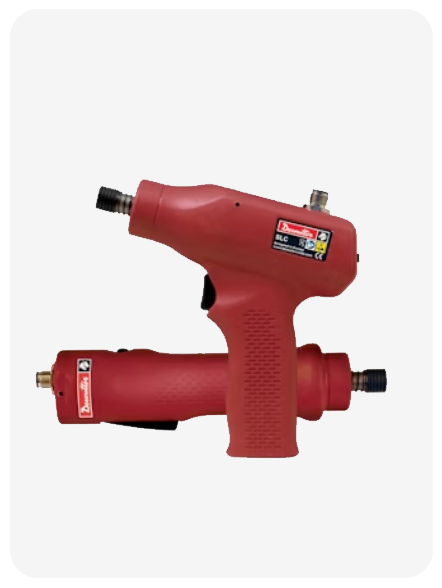

SLC - Low Voltage Current Control Screwdriver

Wide range of models including Straight, Angle Head or Pistol type, the SLC range offers a multi torque tool for a good comfort for the operator

Benefits

• Homogeneous fastening solution on assembly lines
• Speed adjustement possible
• From simple to advanced application

Max torque in forward	Min torque in forward	Subfamily	Tool type	Free Speed	Output drive type	Output drive size (in)
15.00 Nm	0.60 Nm	Pistol Current, Straight current, Fixture spindle Current, Angle current	Pistol, Inline, Angle head	600, 320, 1200 rpm	Hex	1/4 in

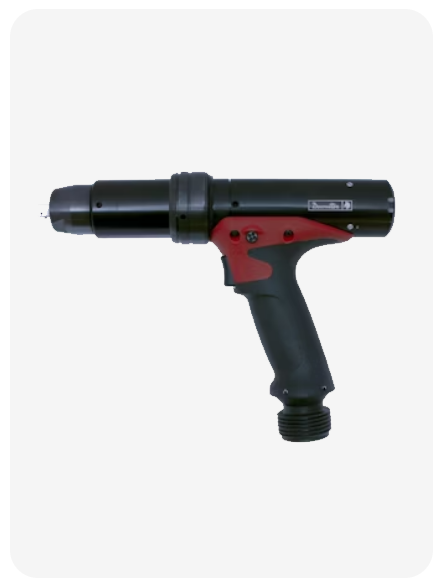

ERP - Tranducerized pistol-grip nutrunner

High accuracy, Tranducerized pistol grip nutrunner for your most critical applications.

Benefits

• Several shapes and versions in order to fit the application
• Built in transducer, complimented by innovative software, offering multiple tightening possibilities with just one tool.
• High reliability and low maintenance thanks to it brushless motor and long life gears, ensuring low lifecycle costs.
• Direct operator feedback with the 2 coloured LED’s reducing your cycle time and potential quality costs
• Triple strain gauge transducer with high frequency angle sensor for a high accuracy and repeatability to maximise your quality.
• Plug and play solution for CVIL and CVI3 controllers for a maximum flexibility and quick setup to lower indirect labour cost.

Max torque in forward	Min torque in forward	Free speed	Output drive type	Output drive size (in)
40.00 Nm	0.50 Nm	2000, 1540, 1070, 680 rpm	Hex, Sq	1/4, 3/8

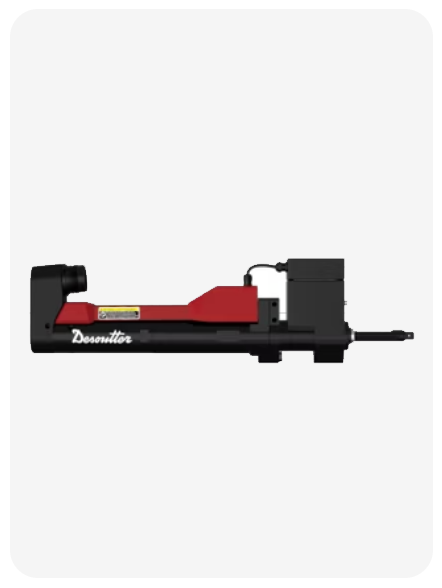

EFD-TA – Double transducer in-line fixture spindle

Whether your process requires a single or multiple synchronised spindles, Desoutter’s EFD-TA double transducer in-line spindle, with optional telescopic shaft offers you exceptional accuracy featuring an angle sensor and high speed brushless electric motor to ensure best in class repeatability. The compact design makes its integration easy. Whatever your application, the Desoutter EFD-TA with a CVI3 controller offers you outstanding reliability and full traceability withing Desoutter Ecosystem.

Benefits

• Accurate torque and angle control ensuring the quality of each tightening and reducing your potential warranty costs
• Compact and light design with a fixture flange for easy integration to lower installation cost
• Built in transducer, complimented by innovative software, offering multiple tightening possibilities with just one tool
• High reliability and low maintenance thanks to it 6 pole brushless motor and long life gears, ensuring low lifecycle costs
• Double strain gauge transducer with high frequency angle sensor for high accuracy and repeatability to maximise your quality
• Complete Plug and play solution, with the CVI3 platform, for unrivalled flexibility and quick setup to lower installation cost

Weight	Length (L)	Max torque in forward	Min torque in forward
2.8, 3.3, 5.7, 7.9 kg	376, 412, 165, 465, 481 mm	360.00 Nm	7.00 Nm
