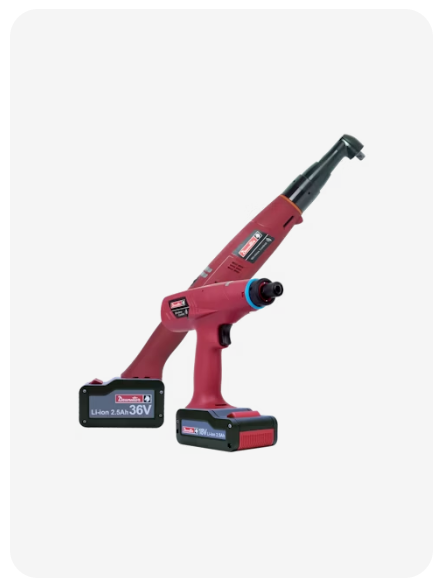

E-LIT WIRELESS - Battery Clutch Tool

Accurate and durable, Desoutter's ELC battery clutch tool with 2.4 GHz and 5 GHz wireless communication, is available in both pistol or angle-head, providing high repeatability, low maintenance and excellent ergonomics ensuring a best-in-class quality and productivity.

Benefits

• Brushless motor and long-life gears provide reliability and low maintenance costs.
• Cross thread prevention function settings ensuring the quality of your tightening and reducing your potential warranty costs.
• 2.4 GHz and 5 GHz wireless communication for fast and secure data communication.
• Easily programmable using Desoutter's CVI Config software, providing asset management capability to lower your operating costs.
• Dual speed setting ensuring good quality clamp load, keeping the productivity reducing your cycle time and potential quality costs.
• Front LED to guide the operator even in reduced visibility applications, reducing your cycle time and potential quality costs.
• Accurate torque repeatability ensuring the quality of each tightening and reducing your potential warranty costs.
• Exceptional ergonomics with finger support and 2 battery positions to reduce operator fatigue, and boost your productivity.
• Easy reverse mode and buzzer setting for operator comfort reducing your cycle time and operating costs.

Max torque in forward	Min torque in forward	Output drive type	Output drive size (in)
60.00 Nm	2.00 Nm	Hex, Sq	1/4, 3/8, 1/2

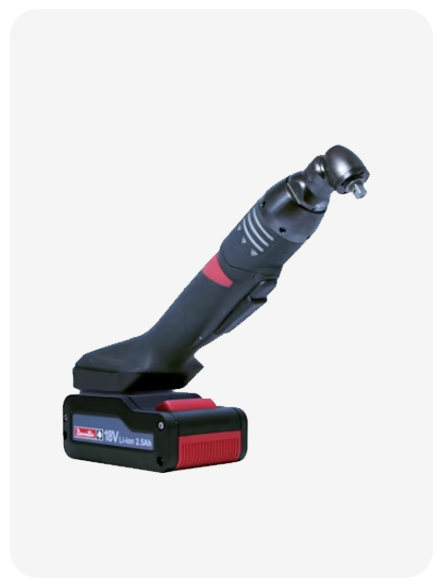

EABS - Transducerized Battery Tool

The Smallest battery angle-head nutrunner, offering high accuracy with wireless communication for your critical applications.

Benefits

• One hand nutrunner offering high accuracy tightening even in joints with limited access.
• Torque and angle control ensuring the quality of each tightening and reducing your potential warranty costs.
• RFID pairing between the tool and CONNECT Smart Hub enabling quick and easy tool replacement and increased uptime.
• Lightweight design and two battery positions provides excellent balance ensuring your operators enhanced comfort and productivity.
• 2.4 Ghz and 5 Ghz wireless communication for fast and secure data communication.
• Built in transducer, complimented by innovative software, offering multiple tightening possibilities with just one tool.
• Double strain gauge transducer with high frequency angle sensor for a high accuracy and repeatability to maximise your quality.
• Use of 18V or 36V battery, with same performance level in speed & torque. EABS can run over 1000 rpm with the lighter 18V battery

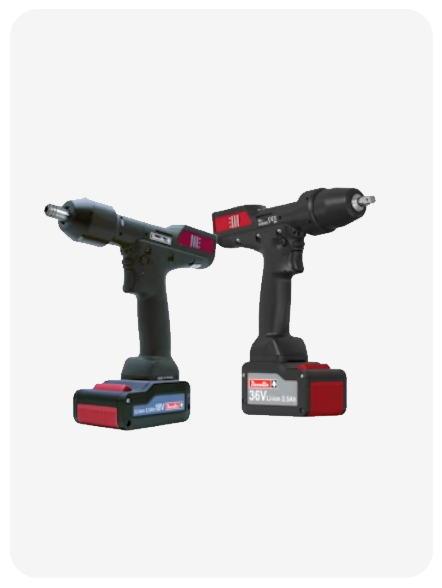

E-PULSE - Battery Electric Pulse Tool - Wireless

Low reaction battery pulse pistol tool with wireless communication for your critical applications.

Benefits

• Patented design featuring no oil chamber decreasing both reaction and maintenance, improving uptime and lowering lifecycle costs.
• Torque and angle control ensuring the quality of each tightening.
• Built in transducer, complimented by innovative software, offering multiple tightening possibilities with just one tool.
• 2.4 Ghz and 5 Ghz wireless communication for fast and secure data communication.
• RFID pairing between the tool and the controller enabling quick and easy tool replacement and increased uptime.
• Clear embedded Display, with torque, angle and tool status feedback to raise your productivity.
• Lightweight design and two battery positions provides excellent ergonomics and balance ensuring

Weight	Max torque in forward	Min torque in forward	Free speed 18V Max	Free speed 36V Max
1.2, 1.34 kg	45.00 Nm	6.00 Nm	1520.00 rpm	2350.00 rpm

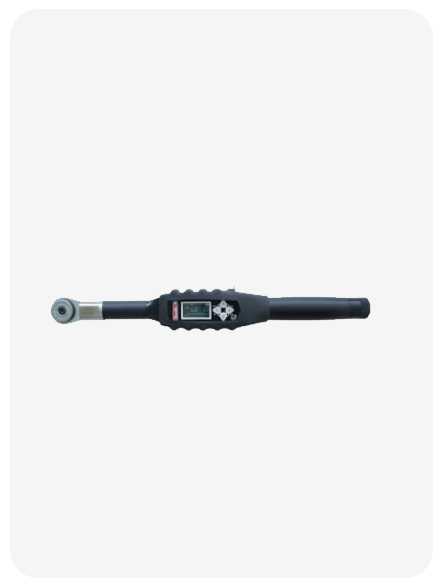

Q-Shield - C- Smart Connected Wrench

Whether your process require manual tightening operation, torque checking or quality check operation, with or without full reporting , the Desoutter QShield digital wrench is designed to to error proof your operation. The robust features a long life Li-ion battery, gyroscope, Yield detection and a double bridge strain gauge to provide full traceability, irrespective of the operator or process.

Benefits

• 2.4 Ghz and 5 Ghz wireless communication for fast and secure data communication.
• Easily programmable using CVI CONFIG software, providing comprehensive asset management capability to lower your operating costs.
• Direct operator feedback with the LED display and vibration capability reducing your cycle time and potential quality costs.
• RFID pairing between QShield and the controller enabling quick and easy tool replacement and increased uptime.
• Accurate transducer ensuring the quality of each tightening and reducing your potential warranty costs.

Weight	Drive (mm)	Max torque	Min torque	Lever arm length	Autonomy (h)	Communicating
2.68, 0.78, 0.88, 1.68, 3.28, 5.58, 6.78, 8.28 kg	14x18, 9x12, 21x26, ø28	900.00 Nm	3.00 Nm	626, 320, 342, 552, 960, 1100, 1362, 1440 mm	8h connected/10h in standalone	Yes
